Q1 — Will this board work with a Ryzen 9 9000-series CPU right out of the box?

A1: Possibly — the product lists Ryzen 9000 support, but actual out-of-box compatibility depends on the board’s BIOS version. Confirm the seller’s stated BIOS or be ready to update firmware if needed.

Q2 — How many Gen5 NVMe drives can I run and will they throttle?

A2: The board advertises two M.2 Gen5 x4 slots (plus additional Gen4 M.2 slots), so you can install multiple Gen5 NVMe drives. Thermal throttling risk exists for sustained heavy writes on Gen5 SSDs; the board includes EZ M.2 Shield Frozr II and heatsinks to mitigate this — but good case airflow helps significantly.

Q3 — Do I need a special PSU or cooler for this board/CPU combo?

A3: Use a quality PSU sized for your CPU/GPU (modern high-end Ryzen + PCIe 5.0 GPU can draw significant power). The board’s 80A SPS VRM is robust, but adequate case airflow and a capable CPU cooler are recommended to fully benefit from sustained performance and to prevent thermal throttling of VRMs/M.2 SSDs.

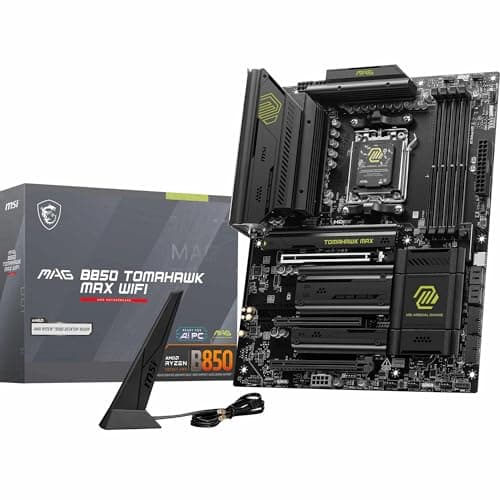

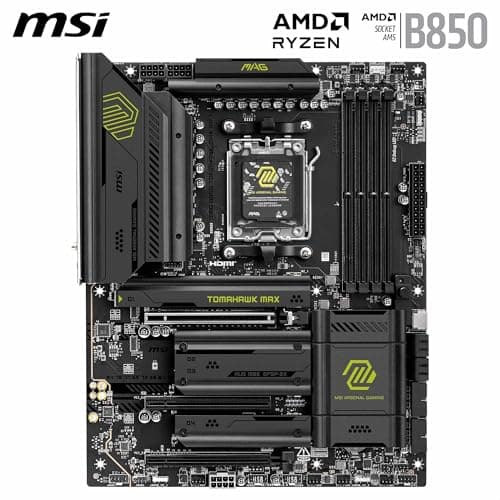

MSI MAG B850 Tomahawk MAX WiFi Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+ MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

Key Specifications

Product Dimensions

‎13.46 x 10.79 x 2.91 inches

Processor

others

RAM

‎DDR5

Series

‎MAG B850 Tomahawk MAX

Item Weight

Platform

Windows 11

Reviewed by 228 people this week!

★★★★★

Buy at Amazon

Prime Delivery • 30-Day Returns

msi

4.5

228 reviews

Buy at Amazon

Prime Delivery • 30-Day Returns

MSI MAG B850 Tomahawk MAX WiFi Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+ MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

The MSI MAG B850 Tomahawk MAX is an ATX desktop motherboard built for AMD’s AM5 platform (Ryzen 7000 / 8000 / 9000 families). It’s positioned as a mainstream-to-high-value board that pushes modern features into a B-series product: high-current VRM topology for stable CPU power, DDR5 memory OC support, PCIe 5.0 graphics slot and multiple next-gen M.2 slots, plus advanced connectivity (Wi-Fi 7, 5 Gbps LAN and USB 20G Type-C). That combination aims to deliver a future-proof platform for gaming and content creation without stepping up to X-series pricing.

Free Shipping

2-Year Warranty

30-Day Returns

Key Features

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG B850 TOMAHAWK MAX WIFI employs a 14 Duet Rail Power System (80A, SPS) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

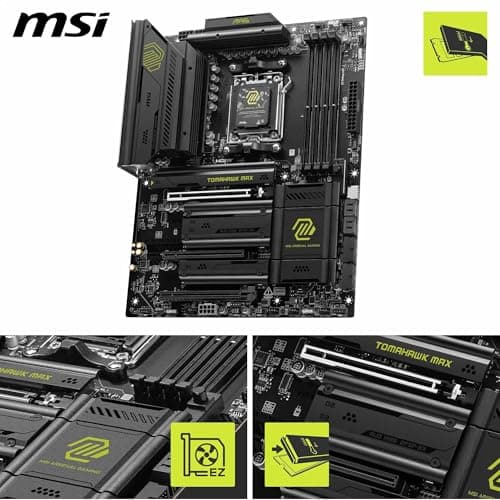

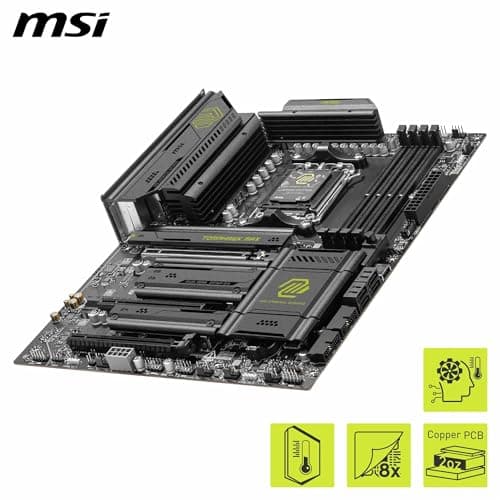

FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, and a Combo-fan (for pump & system) header (3A)

DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8400+ MT/s); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards

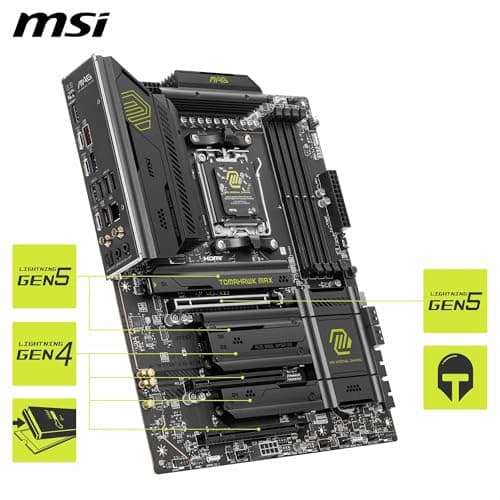

QUADRUPLE M.2 CONNECTORS - Storage options include 2 x M.2 Gen5 x4 128Gbps slots, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot; Features EZ M.2 Shield Frozr II to prevent thermal throttling and EZ M.2 Clip II for EZ DIY experience

CONNECTIVITY - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 20G Type-C and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)

Key Considerations

CPU / socket: AM5 — supports Ryzen 7000/8000/9000 series; check BIOS version for the latest CPUs.

Power delivery: 14 Duet Rail / 80A SPS VRM designed for high performance and stable power delivery.

Memory: DDR5 with extreme OC headroom (MSI advertises 8400+ MT/s in 1DPC 1R configs).

Expansion & storage: PCIe 5.0 x16 slot; quad M.2 support including 2× M.2 Gen5 x4 slots.

MSI’s FROZR GUARD and thermal pads, plus EZ M.2 Shield Frozr II and an Extended Heatsink, highlight this board’s emphasis on keeping VRMs and Gen5 SSDs cool — important because Gen5 drives and high-power CPUs can otherwise thermal-throttle under sustained loads.

These factors represent the most critical aspects that will impact your satisfaction with this product.

Customer Reviews

Quality I can Trust

2025-12-10T03:52:38.938Z

Just a little backstory, I used my previous motherboard MSI Z97-G45 with a i7-4790k cpu for about 11 years. It served me well but that CPU near its end of lifecycle (Win 10 support no more Oct 2025) and gaming performance not adequate for my needs.

John Cheung

Works Very Well Reliable and Feature-Packed

2025-12-10T03:53:09.482Z

Tackling genuine issues of PC building is no small feat, but the GPU release button, NVME easy click system, and the heat syncs, ram slots, just... everything felt right and went smoothly.

Tycoon248

Frequently Asked Questions

Final Verdict

The MSI MAG B850 Tomahawk MAX packs high-end desktop features into a B-series motherboard: stout VRMs, DDR5 extreme OC support, PCIe 5.0 GPU slot, multiple Gen5 M.2 bays, and cutting-edge connectivity (Wi-Fi 7, 5Gb LAN, USB 20G Type-C). It’s a compelling choice if you want a future-facing AM5 platform for gaming and content creation without necessarily paying X-series prices — but pay attention to BIOS/CPU compatibility, plan for good chassis airflow, and review lane-sharing rules when populating many NVMe/SATA devices.
